SUPPLIES
When we say Everything Tape and Reel, Everything Carrier Tape, we mean it. We invite you to scroll down and see what our regular stocking items are.
Check out our WEEKLY CARRIER TAPE INVENTORY (see the menu at the top of the page)
Surface Mount Carrier Tape – our Searchable Carrier Tape website will be available 1st Quarter 2021.
Custom Carrier Tape - If we don’t already make, we can. Our in house tooling and manufacturing make custom pockets mean you can get it all done here.
Carrier Tape Slicing Solutions we do not use or carry because they are not addressed in EIA481E, and in most cases, the splice is thicker than EIA481E allows.
Cover Tape – We offer both Heat and Pressure cover tape.
Reels - White 7” (1 piece) and 13” (2 piece) reels are the standard sizes, but this list only shows our common stocking sizes. Need a different width, 15” or 22” plastic reel, or even a different color – just ask.
Guard Rings – We offer both individual 1.1meter long guard rings and also on a 150 meter reel you can cut them to size to reduce waste.
Leader Tape – We offer conductive leader tape up to 72mm in 150 meter reel you can cut to length
6mm Sealing Tape – White or Blue
Axial and Radial Supplies

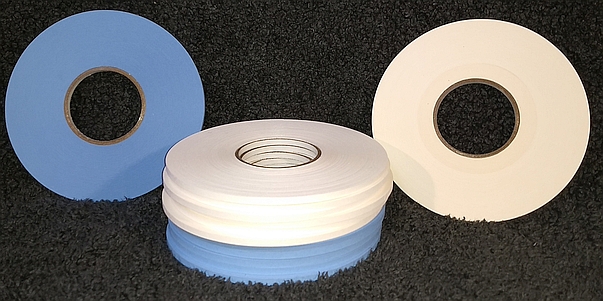

6mm Sealing Tape – White or Blue. We stock BD-1 tape. This material has very strong aggressive adhesive that will hold even the heaviest devices.
Radial Heat Seal Tape – we stock the Nitto 744 series in 12” rolls. These will fit on the standard Argosy Radial tape and reel machines.
Flanges – 10”, 12” and 14”
3” Hubs – we stock Badger Plugs
Cores – stock a variety of standard sizes and can custom order any size you might want.
Interliner Paper both Low Sulfur and Blue Line
Corrugated Outer Wrap
Radial Punch Tape – we now make Radial Punch Tape in house.
Radial Splice Tape
| ITEM # | 7" REELS | |
| 5649 | 7I24RSF.ASW / RLT7X24T, 7" X 24MM RL (1 PIECE RL) 24MM, 96 PER CS. CS QTY ONLY | 7I24RSF.ASW |
| 5648 | 7I16RSF.ASW / RLT7X16T, 7" X 16MM RL (1 PIECE RL) 16MM, 128 PER CS. CS QTY ONLY | 7I16RSF.ASW |
| 5647 | 7I12RSF.ASW / RLT7X12T, 7" X 12MM RL (1 PIECE RL) 12MM, 148 PER CS. CS QTY ONLY | 7I12RSF.ASW |
| 5646 | 7IS8RSF.ASW / RLT7X08T, 7" X 8MM RL (1 PIECE RL) 8MM, 200 PER CS. CS QTY ONLY | 7IS8RSF.ASW |

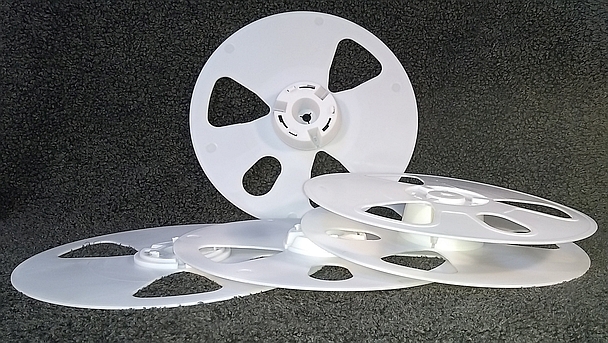

| ITEM # | 13I44F-4H.ASW, 13" FLANGE (2 PIECE RL) X 44MM, 50 PER CS. CS QTY ONLY | 13I44F-4H.ASW |
| 5631 | 13I28F-4H.ASW, 13" FLANGE (2 PIECE RL) X 28MM, 50 PER CS. CS QTY ONLY | 13I28F-4H.ASW |
| 5630 | 13I16F-4H.ASW, 13" FLANGE (2 PIECE RL) X 16MM, 50 PER CS. CS QTY ONLY | 13I16F-4H.ASW |
| 5629 | 13I8F-4H.ASW, 13" FLANGE (2 PIECE RL) X 8MM, 50 PER CS. CS QTY ONLY | 13I8F-4H.ASW |
| 5628 | 13I4F-4H.ASW, 13" FLANGE (2 PIECE RL) X 4MM, 60 PER CS. CS QTY ONLY | 13I4F-4H.ASW |

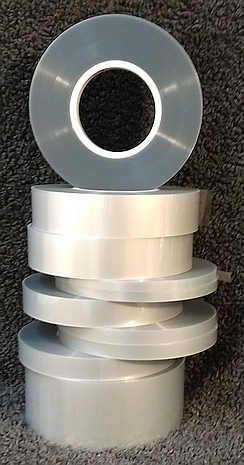

| HEAT ACTIVATED SMT COVER TAPE | ||
| 5615 | HEAT ACTIVATED COVER TAPE FOR 72MM 4/CS, 65.5MM WIDE X 300MTR MOQ - 4 | ST210655-300 |
| 5614 | HEAT ACTIVATED COVER TAPE FOR 56MM 5/CS, 49.5 WIDE X 300MTR | ST210496-300 |
| 5613 | HEAT ACTIVATED COVER TAPE FOR 44MM 5/CS, 37.5MM WIDE X 300MTR | ST210375-300 |
| 5612 | HEAT ACTIVATED COVER TAPE FOR 32MM 10/CS, 25.5MM WIDE X 300MTR | ST210255-300 |
| 5611A | HEAT ACTIVATED COVER TAPE FOR 24MM 10/CS, 21.0MM WIDE X 300MTR MOQ 10 | ST210210-300 |
| 5611 | HEAT ACTIVATED COVER TAPE FOR 24MM 10/CS, 21.0MM WIDE X 500MTR | ST210210-500 |
| 5610 | HEAT ACTIVATED COVER TAPE FOR 16MM 15/CS, 13.3MM WIDE X 300MTR | ST210133-300 |
| 5609 | HEAT ACTIVATED COVER TAPE FOR 12MM 30/CS, 9.3MM WIDE X 300MTR | ST210092-300 |
| 5608 | HEAT ACTIVATED COVER TAPE FOR 8MM 50/CS, 5.5MM WIDE X 300MTR | ST210055-300 |
| This is the standard Neptco Heat Seal Cover tape. | ||

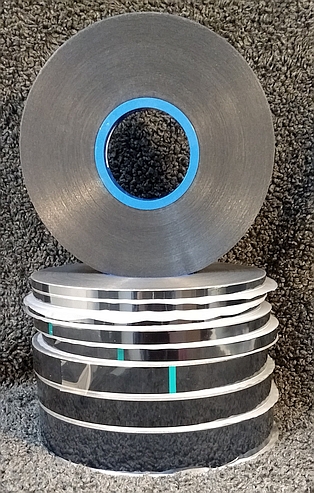

| PRESSURE ACTIVATED SMT COVER TAPE | ||
| 5607 | PRESSURE ACTIVATED COVER TAPE FOR 72MM 4/CS, 65.5MM WIDE X 500MTR MOQ 4 | ST300655-500 |
| 5606 | PRESSURE ACTIVATED COVER TAPE FOR 56MM 5/CS, 49.5MM WIDE X 500MTR | ST300495-500 |
| 5605 | PRESSURE ACTIVATED COVER TAPE FOR 44MM 5/CS, 37.5MM WIDE X 500MTR | ST300375-500 |
| 5604 | PRESSURE ACTIVATED COVER TAPE FOR 32MM 7/CS, 25.5MM WIDE X 500MTR | ST300255-500 |
| 5603 | PRESSURE ACTIVATED COVER TAPE FOR 24MM 8/CS, 21.3MM WIDE X 500MTR | ST300213-500 |
| 5602 | PRESSURE ACTIVATED COVER TAPE FOR 16MM 14/CS, 13.3MM WIDE X 500MTR | ST300133-500 |
| 5601 | PRESSURE ACTIVATED COVER TAPE FOR 12MM 18/CS, 9.3MM WIDE X 500MTR | ST300093-500 |
| 5600 | PRESSURE ACTIVATED COVER TAPE FOR 8MM 50/CS, 5.5MM WIDE X 300MTR | ST300055-300 |
| When Neptco stopped manufacturing PSA tape, it left a void in the US. | ||
| Since we use the material we sell, we tested many different PSA tape. | ||
| Our production team loved this material the best by far. | ||
| ITEM # | AXIAL AND RADIAL HOLD DOWN TAPE | |
| 5655 | TAPE RADIAL 744SH 6mm (heat seal) - 6mm X 500M (12" DIA) 30/CS MOQ 30 | 744SH |
| 5651 | TAPE HD AXIAL BLUE - 6.35mm X 180M 48 RLS/CS MOQ 48 | BD-1 |
| 5650 | TAPE HD AXIAL WHITE - 6.35mm X 180M 48 RLS/CS MOQ 48 | BD-1 |

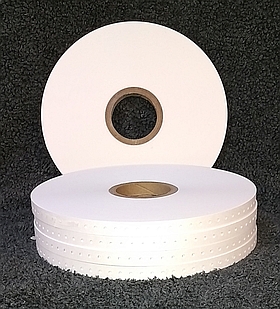

| RADIAL PUNCH TAPE | ||
| 5526B | RADIAL CARRIER WHITE PAPER (PREPUNCHED) - 18mm X .018" X 630', 12.7MM HOLE PITCH MOQ5 | ITEM# 5526B |
| 5526A | RADIAL CARRIER WHITE PAPER (PREPUNCHED) - 18mm X .013" X 630', 12.7MM HOLE PITCH MOQ5 | ITEM# 5526A |
| When Klaus @ Hansa Tooling and Engineering decided to retire, we were fortunate to acquire the Radial Punch Tape equipent. | ||
| This allows us to offer consistent high quality rolls of radial punch tape. | ||

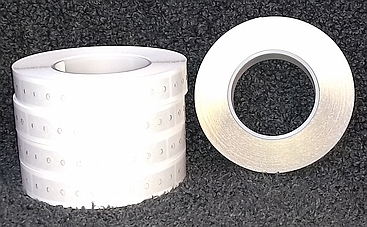

| ITEM # | RADIAL SPLICE TAPE | |
| 5520 | SPLICE TAPE RADIAL / ISILABEL 12.7 PITCH. 500/ROLL LIMITED TO STOCK ON HAND | ITEM# 5520 |

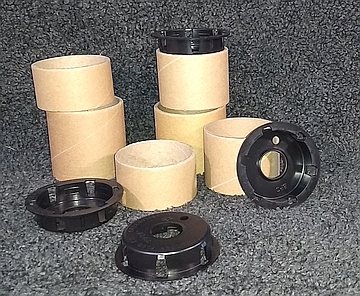

| CORES | ||
| 5516 | CORE, CARDBOARD - 3" DIA. X 1-13/16"W 550/CS | ITEM# 5516 |
| 5530 | CORE, CARDBOARD - 3" DIA X 2-1/2"W 275/CS | ITEM# 5530 |
| 5504 | CORE, CARDBOARD - 3" DIA. X 3-1/4"W 275/CS | ITEM# 5504 |
| 5505 | CORE, CARDBOARD - 3" DIA. X 3-5/8"W 250/CS | ITEM# 5505 |
| 5645 | CORE, CARDBOARD - 3" DIA X 4"W 200/CS | ITEM# 5645 |
| 5503 | CORE, CARDBOARD - 3" DIA. X 3"W 300/CS | ITEM# 5503 |

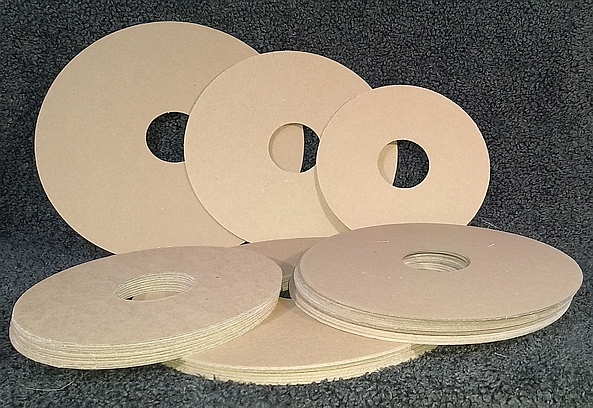

| AXIAL AND RADIAL FLANGES | ||
| 5500 | FLANGE, CHIPBOARD - 10" DIA 200/CS | ITEM# 5500 |
| 5501 | FLANGE, CHIPBOARD - 12" DIA 220/CS | ITEM# 5501 |
| 5502 | FLANGE, CHIPBOARD - 14" DIA 250/CS | ITEM# 5502 |

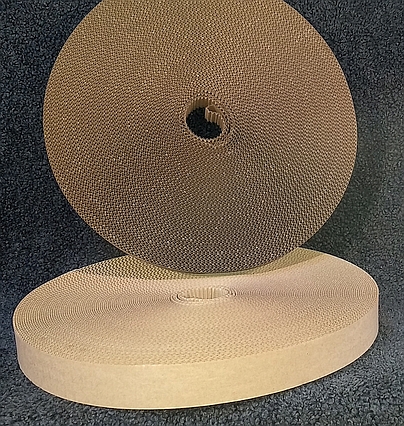

| CORRUGATED OUTER WRAP | ||
| 5517 | CORRUGATED OUTER WRAP - 1 3/4" X 250' 10 RL MOQ | ITEM# 5517 |
| 5512 | CORRUGATED OUTER WRAP - 2 5/8" X 250' 10 RL MOQ | ITEM# 5512 |
| 5515 | CORRUGATED OUTER WRAP - 2 7/8" X 250' 10 RL MOQ | ITEM# 5515 |
| 5513 | CORRUGATED OUTER WRAP - 3 1/4" X 250' 10 RL MOQ | ITEM# 5513 |
| 5529 | CORRUGATED OUTER WRAP - 3 1/2" X 250' 10 RL MOQ | ITEM# 5529 |
| 5514 | CORRUGATED OUTER WRAP - 3 3/4" X 250' 10 RL MOQ | ITEM# 5514 |

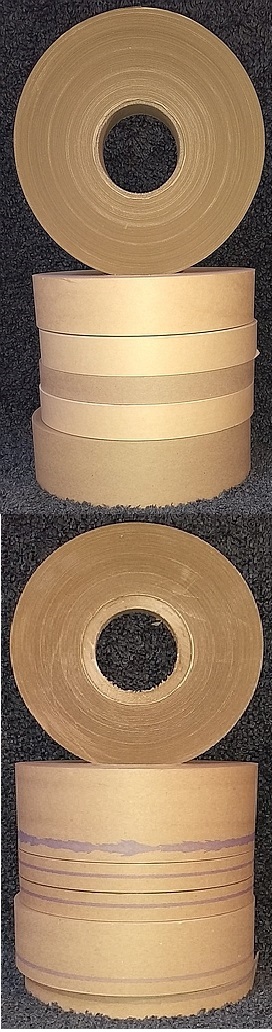

| LOW SULFUR and BLUE LINE INTERLINER | ||
| 5532 | INTERLINER, BLUE LINE - 1/2" X 4800' | ITEM# 5532 |
| 5527 | INTERLINER, LOW SULFER - 5/8" X 1025' | ITEM# 5527 |
| 5528 | INTERLINER, LOW SULFER - 7/8" X 1025' | ITEM# 5528 |
| 5525 | INTERLINER, LOW SULFER - 13/16" X 4800' | ITEM# 5525 |
| 5531 | INTERLINER, BLUE LINE - 1" X 1025' | ITEM# 5531 |
| 5524 | INTERLINER, LOW SULFER - 1 5/32" X 4800' | ITEM# 5524 |
| 5507 | INTERLINER, LOW SULFER - 1 5/8" X 1025' | ITEM# 5507 |
| 5508 | INTERLINER, LOW SULFER - 2" X 1025' | ITEM# 5508 |
| 5509 | INTERLINER, LOW SULFER - 2 1/2" X 1025' | ITEM# 5509 |
| 5510 | INTERLINER, LOW SULFER - 2 7/8" X 1025' | ITEM# 5510 |
| 5511 | INTERLINER, LOW SULFER - 3 1/4" X 1025' 250 ROLL MOQ | ITEM# 5511 |
| 5560 | INTERLINER, LOW SULFER - 3 1/2 X 1025' | ITEM# 5560 |
| We stock both low sulfer and blue line interiliner | ||
| We normally have 1 5/8", 2 1/2" and 3 1/4" low sulfer | ||
| Blue line is not a "stocking item" and is SPECIAL ORDER | ||
| Blue line interliner is specific to Military Applications, even though both papers are essentially the same. | ||
| 16" diameter rolls are typically special order only and are 4,800 linear feet. | ||
| 9" diameter rolls are the standard and are 1,025 linear feet. | ||
| ALL SPECIAL ORDERS must be quoted for minimum order quantity. | ||
| A general guideline is you need about 825 1" wide rolls to meet the minimum, | ||
| or about 410 2" wide rolls to meet the minimum | ||
| or 250 3 1/4" wide rolls to meed the minimum | ||
